Relaxn 20A Plug Harness

Relaxn 20A Plug Harness

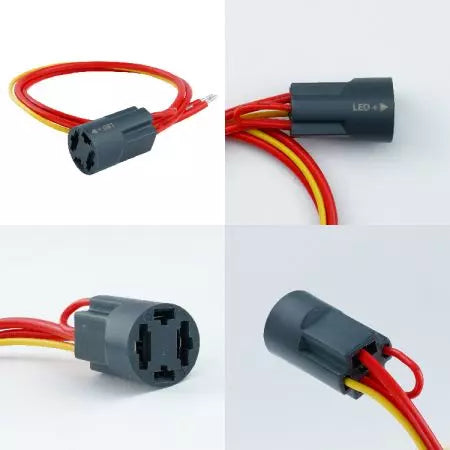

The Relaxn plug harness suits all Relaxn 20A switches.

The kit comes with 6" (15cm) long UL1015 #18 gauge cables for the main switch terminals, which is enough for carrying 20A current based on ABYC standard. And #20 gauge cables for the LED terminals.

Installation is very simple, first of all you can see there is a laser etched LED + mark with an arrow. On the switch you will also find the positive mark of the LED + terminal,  you can also identify the LED + terminal from the sides of the switches - the end with larger colored base is the positive end. Align the LED+ arrow on the wiring harness kit to that larger end and push the housing in and you're done!

Features

• Jumper cable allowing configuration of LED Ring to be "Push ON" or "Always ON"
• UL1015 18AWG cable capable of carrying 20A current
• Cable length: 6" (15cm)
